Name: RS WA30
Brand: Shenzhen Rodee Sensors Co., Ltd
SKU: RSWA30

RS WA30

Shenzhen Rodee Sensors Co., Ltd

RS WA30

Shenzhen Rodee Sensors Co., Ltd

Product form

RS WA30 Series Are the Pressure Sensors with digital monitor for temperature and pressure, products are special designed for Outdoor Use Applications, i.e., Fire Fighting,... Read more

Price on request

Need more information?

Request a quote, consultation, or technical details.

Specifications

General & Electric

Electrical Connection: M12-1 (4-pin)

Electrical Output Signal: 4-20 mA, Current Output

Operating Supply Voltage: 20-28 VDC, 24 V

Protection Class: IP68

Approvals & Certifications: CE

Seal: FKM

Process Connection Type: G1/4A DIN 3852-E

Media Contact Material: 316L

Housing Material: 304L

Media Contact Material: 316L

Physical

Pressure Reference: absolute

Overload Pressure: 150 bar

Burst Pressure: 300 bar

Performance

Accuracy (+- %FS): ±0.50% FS, -20°C-85°C

Accuracy (TEB Max): ±0.50% FS, -20°C-85°C

Respone Time: 1.0 ms

Long Term Stability: 0.10% FS/year

Environment

Operating Media Temperature: -40°C-125°C

Operating Ambient Temperature: -40°C-85°C

Storage Temperature: -40°C-85°C

Additional Information

Country of Origin: CN

Description

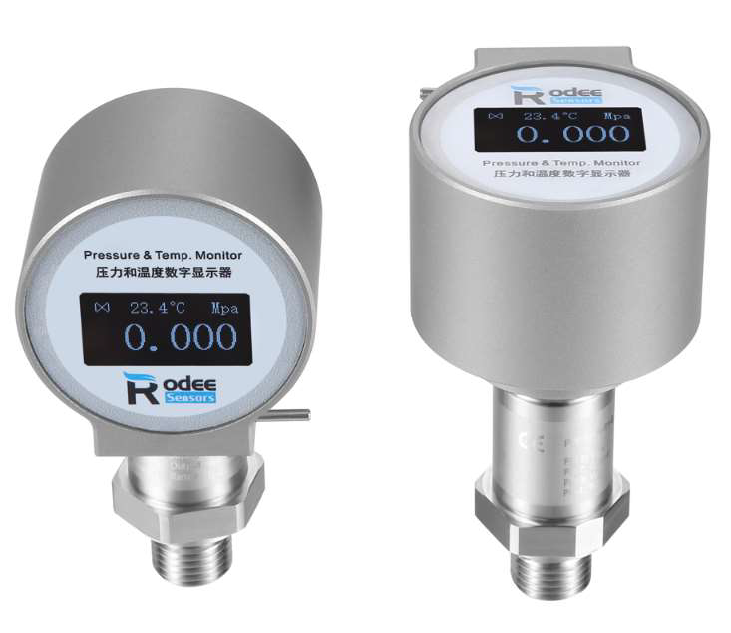

RS WA30 Series

Are the Pressure Sensors with digital monitor for temperature and pressure, products are special designed for Outdoor Use Applications, i.e., Fire Fighting, Water Supply, Oil Pipes, etc. Where needs the sensors to be well protected from water and humidity.

3 types of output are available:

0.5-4.5V Digital Monitor with 0.5-4.5V output
4-20mA Digital Monitor with 4-20 mA output
RS 485 Digital Monitor with Pressure and Temperature outputs
via RS 485

Pressure range, 0 bar...30 bar, Gauge (relative), Gauge (sealed) and Absolute available.
