Name: RS PM160
Brand: Shenzhen Rodee Sensors Co., Ltd

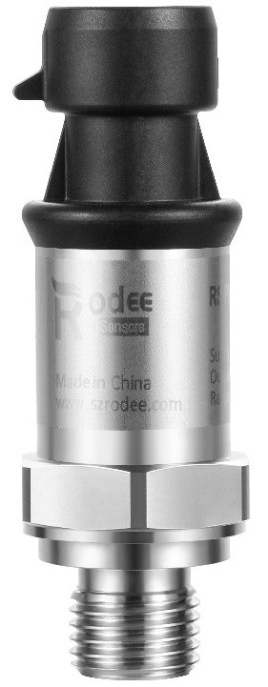

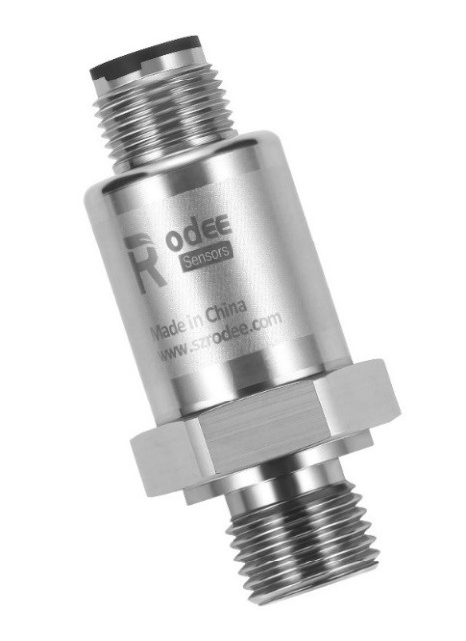

RS PM160

Shenzhen Rodee Sensors Co., Ltd

RS PM160

Shenzhen Rodee Sensors Co., Ltd

Product form

Pressure transmitter with diagnostics and compact designed, use silicon piezoresistive technology, products exhibit very high TEB accuracy and long term stability. Pressure range, 0... Read more

Price on request

Need more information?

Request a quote, consultation, or technical details.

Specifications

General & Electric

Electrical Connection: M12-1 (4-pin)

Electrical Output Signal: 4-20 mA, Current Output

Operating Supply Voltage: 10-32 VDC, 24 V

Protection Class: IP68

Approvals & Certifications: CE

Seal: FKM

Process Connection Type: G1/4A DIN 3852-E

Media Contact Material: 316L

Housing Material: 304L

Media Contact Material: 316L

Physical

Pressure Reference: absolute

Overload Pressure: 40 bar

Burst Pressure: 100 bar

Performance

Accuracy (+- %FS): ±0.20% FS, -30°C-100°C

Accuracy (TEB Max): ±0.30% FS, -30°C-100°C

Respone Time: 1.5 ms

Long Term Stability: 0.10% FS/year

Environment

Operating Media Temperature: -40°C-125°C

Operating Ambient Temperature: -40°C-125°C

Storage Temperature: -40°C-125°C

Additional Information

Country of Origin: CN

Description

Pressure transmitter with diagnostics and compact designed, use silicon piezoresistive technology, products exhibit very high TEB accuracy and long term stability.

Pressure range, 0 bar...2 bar...160 bar, Gauge (relative), Gauge (sealed) and Absolute available.

Downloads

Datasheet
