Name: SGM-101F
Brand: SGM Lektra SRL
SKU: SGM-101F

SGM-101F

SGM Lektra SRL

SGM-101F

SGM Lektra SRL

Product form

Transit time ultrasonic flowmeter For conductive and non-conductive liquids Measure range >0.2m3/h to <400.000 m3/h Clamp on IP68 sensors for... Read more

Price on request

Need more information?

Request a quote, consultation, or technical details.

Specifications

General & Electric

Electrical Connection: Cable Gland M20

Electrical Output Signal: 4-20 mA, Current Output

Operating Supply Voltage: 10-30 V DC

Protection Class: IP68

Approvals & Certifications: CE

Outputs: 1 open collector, 1 relay

Physical

Velocity: 0.2 m3/h - Max 400.000 m3/h

Media: Liquid

Performance

Accuracy: <±1.0% M.V.

Linearity: ±0.5% M.V.

Repeatibility: ±0.2% M.V.

Additional Information

Country of Origin: IT

Description

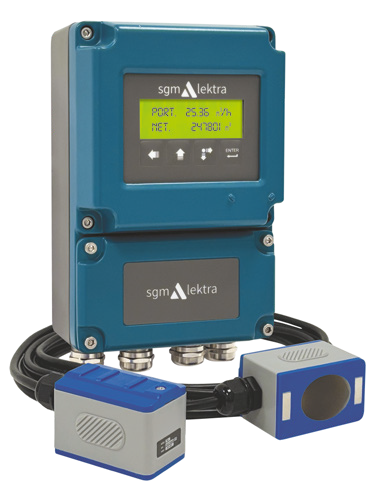

Transit time ultrasonic flowmeter

For conductive and non-conductive liquids
Measure range >0.2m3/h to <400.000 m3/h
Clamp on IP68 sensors for high temperatures
Pipe dimension range DN20...DN4.000
Datalogger via SD card or via MODBUS
Heat meter

Downloads

Datasheet
